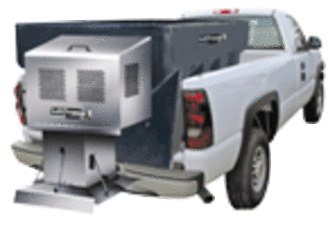

Material Hopper – Rotationally molded double-wall polymer uni-body

spreader with smooth angled walls to maximize material flow. Features

integrated positive position mount system plus 4-piece ratchet

tie-down kit. No drilling required. (Molded fork slots in hoppers makes

for easy one man installation & removal, requires extended fork, or lift

from 4-point tie downs.)
Auger – 2.5" diameter screw-type auger system travels the length of the

hopper floor, providing maximum material flow at a continuous rate. An

independent spinner/auger controller allows for both independent spinner

speed and an infinitely adjustable ratio between spinner and auger.
Material Flow/Output – Salt, 2.2 cu. ft./minute; Salt/Sand,

1.3 cu. ft./minute. Spread width is variable from 5 to 38 feet.
Spinner Chute Assembly – A 11.5" polymer disc is connected to a 3/4"

diameter shaft. The spreading material is guided from the stainless steel

trough to the spinner plate through an enclosed heavy-duty polymer chute

and spinner assembly with an external deflector. The extra-wide

adjustable deflector protects the vehicle and allows for complete

directional spread control and full or compact spread. Total spread path

ranges from 5' to 30'. A convenient spring-latch locking mechanism

allows the spinner assembly to be removed for cleaning/storage.
Electric Motors – Two ultra-quiet 12-volt DC direct-drive motors power

the auger and spinner, and are encased in a heavy-duty poly housing along

with two independently powered vibrators. The wiring harness is

constructed of 10-gauge automotive wire with non-combustible

sheathing (-50°C to -105°C). An in-cab console features independent

controls for the auger, spinner and vibrator.
Standard Equipment – 1/4" black powder coated steel top screen.

Heavy-duty poly-vinyl tarp with reinforced corners and tie-down kit.

Heavy-duty 12 VDC vibrator, rated at 210 of force pounds for maximum

performance. Spreader hold-down kit.
